It is important to know how AC Current Test systems vs. DC voltage test systems differ for insulation testing. These systems affect insulation in unique ways. For example:
- DC voltage test systems struggle with particles in the air, causing contamination.
- Dirt buildup changes conductivity and leakage currents, needing careful testing to stop flashovers.
Choosing the right AC Current Test systems vs. DC voltage test systems ensures accurate results and saves money.
Key Takeaways
- AC test systems work well to find insulation issues in real-life. They are important for industries like airplanes and cars.
- DC test systems are great for spotting slow insulation damage over time. This is very useful for solar power and electric cars.
- Picking the right test system can save money and keep things safe by stopping insulation problems early.
AC Test Systems
AC hipot test: How It Works
The AC hipot test checks how strong insulation is. It uses high AC voltage on the equipment being tested. This test shows how insulation handles stress during normal use. It does not damage the equipment and proves insulation can handle higher voltages for a short time.
Main points about the AC hipot test:
- Finds insulation problems like cracks or layers separating that DC tests miss.
- Matches real-life working conditions better than DC tests.
- Spots factory issues like poor spacing or gaps in insulation.
Modern testers use smart technology for better accuracy and trustworthiness. These tools are key for factory checks and maintenance, keeping electrical equipment safe and lasting longer.
Advantages of AC Test Systems
AC test systems have many good points:
- They find hidden insulation problems before they cause failures.
- Regular tests help transformers and equipment last longer.
- They meet safety rules, making operations safer.
- Early problem detection lowers repair costs and work delays.
Using an AC hipot tester ensures your equipment works well and safely.
Limitations of AC Test Systems

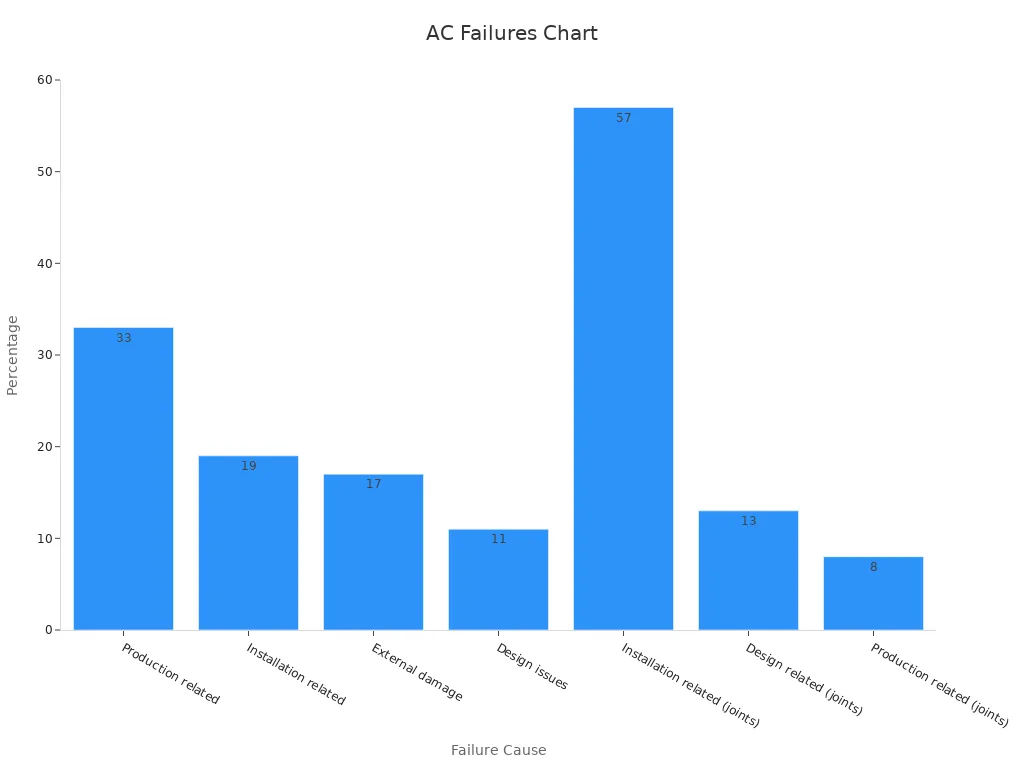

AC test systems also have some downsides. A study found these failure reasons:
| Failure Cause | Percentage |
|---|---|
| Problems during production | 33% |
| Issues during installation | 19% |
| Damage from outside sources | 17% |
| Design mistakes | 11% |
Bad connections and untrained workers increase failure risks, especially in high-voltage cables. For example, new XLPE cables need tests after installation to check they are set up right. Without these tests, failure rates can reach 8 failures per 100 km of cable.
AC dielectric strength test: Applications and Benefits
The AC dielectric strength test checks if insulation can handle high voltage. It makes sure insulation can resist aging, water, and wear. This test stops failures and keeps equipment working well for a long time. Testing with the right voltage is important to avoid damage or missing bad materials.
With an AC dielectric strength test, you can prove your equipment is safe and works properly. This test helps keep electrical systems strong and reliable.
DC Test Systems
DC hipot test: How It Works
The DC hipot test checks how strong insulation is. It uses high DC voltage on the equipment to find weak spots. The test has several steps:
| Step | Description |
|---|---|
| 1 | Use a hipot tester to apply DC voltage to windings. |
| 2 | Slowly or quickly raise the voltage to a set level. |
| 3 | Measure currents flowing to and from the windings to the ground. |
| 4 | Spot insulation failure by noticing sparks or strange current changes. |
| 5 | Do a ramp test by raising voltage slowly and recording data. |
| 6 | Check how the current settles during the test. |
This test finds insulation problems accurately, making it a trusted method.
Advantages of DC Test Systems
DC test systems have many benefits. They let you use higher voltages, like 10 kV, to find hidden insulation issues. These tests can catch early problems, like small cracks, before they get worse. Fixing these problems early saves money over time. DC hipot testers are also easy to carry and use less power, so they’re great for testing in the field.
Limitations of DC Test Systems
DC test systems have some downsides. They don’t copy real-life working conditions as well as AC systems. Some materials may give wrong results because of polarization effects. Also, DC tests might miss some insulation problems, like those caused by aging or stress. Knowing these limits helps you decide when DC testing is best.
DC dielectric strength test: Applications and Benefits
The DC dielectric strength test checks if insulation can handle high voltage without failing. It has many uses and benefits:
| Application/Benefit | Description |
|---|---|
| Safety Prevention | Stops insulation failures, lowering risks of shocks or fires. |
| Quality Control | Makes sure materials are safe before being used. |
| Prolonged Equipment Use | Finds problems early, so you can fix them and use equipment longer. |
| Compliance with Standards | Proves your equipment meets safety rules and works reliably. |
Doing this test keeps your electrical systems safe, strong, and long-lasting.
Comparative Analysis: AC Current Test Systems vs DC Voltage Test Systems
Key Differences Between AC and DC Test Systems
When comparing ac current test systems vs. dc voltage test systems, there are clear differences in how they work. AC systems use alternating current, while DC systems use direct current. This main difference changes how insulation behaves during tests.
| Performance Statistic | AC Test Characteristics | DC Test Characteristics |
|---|---|---|
| Voltage Type | Uses alternating current | Uses direct current |
| Leakage Current Measurement | Often shows higher leakage currents | Usually shows lower leakage currents |
| Dielectric Breakdown | Finds insulation issues missed by DC tests | Less effective at finding some insulation problems |
| Test Duration | Usually takes less time | Often needs more time for accurate results |
| Equipment Sensitivity | Better at spotting certain insulation failures | Good for finding long-term insulation wear |
AC systems are great for finding insulation problems like those in real-life conditions. DC systems are better for spotting slow damage over time. Pick the system based on the problem you want to find.
When to Use AC Test Systems
AC test systems work best when insulation faces changing conditions. Industries like aerospace, cars, and electronics use AC testing to ensure safety and reliability.
| Industry | Application |
|---|---|
| Aerospace | Checks wiring insulation for extreme conditions to avoid failures during flights. |
| Automotive | Tests electrical systems in cars to ensure safety features work properly. |
| Consumer Electronics | Ensures devices like phones and laptops are safe by testing insulation to prevent hazards. |
If you work in these fields, AC testing helps simulate real-world stresses. It also ensures safety rules are met and equipment lasts longer. Using an ac hipot tester for a dielectric strength test can stop expensive problems and improve safety.
When to Use DC Test Systems
DC test systems are better for studying insulation over time. These systems are popular in renewable energy and electric vehicle (EV) industries, where long-term reliability matters most.
| Feature | AC Test Systems | DC Test Systems |
|---|---|---|
| Shift in Customer Preference | 72% prefer multifunctional platforms (2023) | Growing demand in EV and renewable sectors |
| Setup Time Reduction | 30-40% faster with integrated systems | N/A |
| Sales Target for Standalone Units | 63% for legacy maintenance (2023) | N/A |
| Revenue Share | 41% of global AC tester revenues (2023) | N/A |
DC systems are easy to carry and save energy, making them great for fieldwork. They are also good at finding small cracks or insulation wear. If you need a dc dielectric strength test, it can catch early problems, saving time and money later.
Knowing how AC and DC test systems differ helps you pick the best one. AC systems are great for testing real-life conditions. DC systems are better for finding slow damage over time. Think about costs, failure risks, and how long equipment will last. Always check with experts or follow safety rules to ensure your hipot tester works well.
| Factor | Explanation |
|---|---|
| Smart designs/materials | New ideas that work better in dirty environments. |
| Maintenance costs | Covers checking, cleaning, and replacing parts. |
| Breakage rate | Promises from makers about how strong insulators are. |
| Failure effects | How bad problems are if something breaks. |
| Lifespan | How long the insulator is expected to last. |
FAQ
What makes AC and DC hipot testers different?
AC testers mimic real-life conditions. DC testers check for slow insulation damage. Pick one based on what you need to test.
Can a hipot tester harm equipment during testing?
No, if set up correctly, a hipot tester uses safe voltage. It won’t damage the equipment.
How often should insulation testing be done?
Test insulation every year or after big repairs. This keeps equipment safe and reliable.
