Composite insulators use corona rings and grading rings to control electric fields effectively. These composite insulator use corona rings and grading rings help distribute voltage evenly along the insulator and reduce strong electric fields. For instance, studies indicate that 8-inch corona rings significantly lower electric fields, enhancing the safety and performance of the system.
The benefits of these rings are numerous. Corona rings prevent harmful sparks that can damage materials, while grading rings address uneven voltage that may lead to issues. Together, composite insulator use corona rings and grading rings contribute to the longevity and efficiency of insulators, even in challenging conditions. By minimizing damage and extending their lifespan, they ensure a reliable flow of power.
Key Takeaways
- Corona rings manage electric fields to stop harmful discharge and protect insulators.
- Grading rings spread voltage evenly, lowering stress and helping insulators last longer.
- These rings make systems work better by saving energy and improving power delivery.
- Good design and placement of these rings are key for high-voltage systems to work well.
- Using strong materials like aluminum alloys makes these rings work better and last longer.
Understanding Corona Rings
What Are Corona Rings?
Corona rings are round, donut-shaped parts made of metal. They are attached to high-voltage equipment like composite insulators. Their job is to control the electric field around these devices. This helps stop corona discharge, which happens when air near high voltage becomes charged. Corona discharge can waste energy and harm materials.
| Term | Definition |
|---|---|
| Corona Ring | A round, metal part on high-voltage equipment. It controls the electric field to stop corona discharge. |
Corona rings spread out the electric field evenly. This protects insulators and other high-voltage parts from damage. They also lower ozone gas production. Ozone can harm materials and the environment.
Purpose of Corona Rings in Composite Insulators
In high-voltage systems, corona rings are very important. They help composite insulators work better by spreading the electric field evenly. Without them, the electric field would gather in certain spots. This could cause corona discharge and damage the insulator.
Corona rings also lower stress on the insulator’s surface. They stop hotspots that could weaken the material over time. This makes them key for keeping composite insulators strong and reliable in high-voltage systems.
Benefits of Corona Rings in Electric Field Management
Corona rings do more than just stop corona discharge. Here’s how they help manage electric fields:
- They spread out the electric field evenly, protecting high-voltage parts.
- They make insulators last longer by reducing damage from uneven fields.
- They save energy by lowering energy loss in the system.
- They cut down ozone gas, helping the environment and system materials.
There are rules for electric fields to keep systems working well. For example:
| Criteria Description | Limit Value |
|---|---|
| Limit of electric field on grading ring and end fitting | 1.8 kV/mm |
| Limit of average electric field along housing surface | 0.42 kV/mm |
| Limit of electric field at the triple point | 0.35 kV/mm |
Following these rules helps corona rings work their best. It also keeps high-voltage systems reliable for a long time.
The Role of Grading Rings in Composite Insulators
What Are Grading Rings?
Grading rings are round metal parts added to insulators. They help spread out the electric field along the insulator. This stops high electric stress from building up in one spot. Without them, the insulator could get damaged or stop working.
These rings are made from strong metals like aluminum or steel. These materials are good at conducting electricity and last a long time. Grading rings keep the electric field even, which prevents corona discharge. This also helps the insulator last longer. They are very important for high-voltage systems to work well and stay reliable.
Grading and Voltage Distribution Along Insulators
Grading rings make voltage spread evenly on insulators. Without them, voltage gathers near the energized end. This creates uneven stress, which can cause damage or failure.
Adding grading rings fixes this problem. They make the voltage spread more evenly. Studies show they increase insulation distance by 61%. This helps insulators handle high voltage better and last longer.

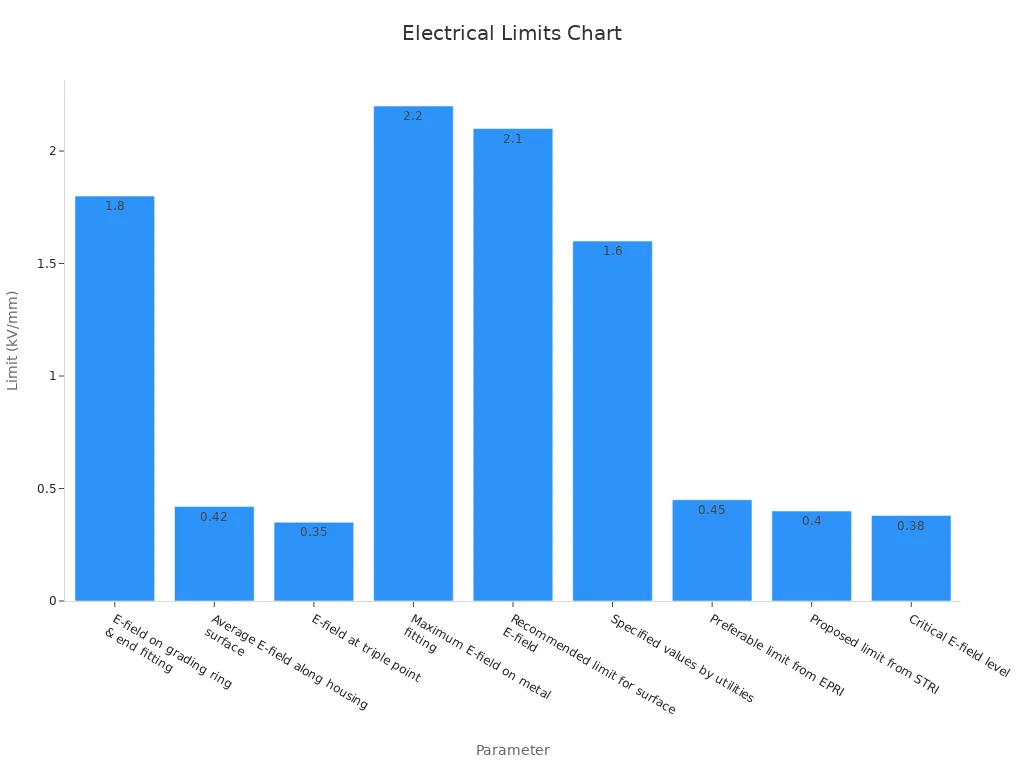

| Parameter | Limit |
|---|---|
| E-field on grading ring & end fitting | 1.8 kV/mm |
| Average E-field along housing surface | 0.42 kV/mm |
| E-field at triple point | 0.35 kV/mm |
| Maximum E-field on metal fitting | 2.2 kV/mm |
| Recommended limit for surface E-field | 2.1 kV/mm |
| Specified values by utilities | 1.6 kV/mm |
| Preferable limit from EPRI | 0.45 kV/mm |
| Proposed limit from STRI | 0.4 kV/mm |
| Critical E-field level | 0.38 kV/mm |
The table shows safe electric field levels for grading rings. Following these limits keeps systems working safely and prevents problems.
Preventing Failures with Grading Rings
Grading rings stop insulators from failing. They spread out the electric field to avoid corona discharge. Corona discharge wastes energy and harms materials. The rings also stop hotspots that weaken insulators over time.
Tests show grading rings improve high-voltage systems. For example:
- They make voltage spread evenly, lowering stress on insulators.
- They increase insulation distance, making systems stronger.
- They keep the electric field safe, stopping early failures.
Using grading rings makes high-voltage systems last longer and work better. They protect insulators and improve the safety and efficiency of the system.
How Corona Rings and Grading Rings Boost Performance
Stopping Corona Discharge and Saving Energy
Corona and grading rings help stop corona discharge and save energy. Corona discharge happens when the electric field gets too strong. This makes the air around it charged, wasting energy and harming materials. Corona rings spread the electric field evenly to stop this.
- Research shows better grading ring designs reduce corona discharge. For example:
- Ultraviolet imaging (UVI) found spots with high corona activity.
- Redesigned grading rings lowered the electric field from 3868 V/mm to 2475 V/mm.
- After adding new rings, no corona discharge was seen, proving they work.
- Aluminum corona rings also improve high-voltage systems and cut power loss.
Stopping corona discharge protects power lines. This makes energy delivery more reliable and efficient.
Making Insulators Last Longer
Composite insulators use corona and grading rings to last longer. These rings lower stress by spreading voltage evenly. This stops hotspots that could damage the insulator over time.
Data shows these rings help insulators last:
- Composite insulators have a failure rate as low as 10^-5 yearly.
- Substation insulators fail at rates between 10^-4 and 10^-5, depending on conditions.
By reducing stress and damage, these rings keep insulators working well for years, even in tough conditions.
Reducing Environmental and System Stress
Corona discharge wastes energy and causes other problems. Corona rings fix this by managing the electric field. They save energy and make systems more reliable.
| Benefit | What It Does |
|---|---|
| Stops corona discharge | Prevents stress buildup, keeping systems stable. |
| Better system performance | Creates a cleaner, more stable electric setup. |
| Longer lifespan | Protects parts, helping them last longer. |
| Safer operation | Lowers risks from corona discharge, keeping workers safe. |
Other methods, like bundling wires and smoothing sharp edges, also reduce corona effects. Together with corona rings, these steps make high-voltage systems safer and better for the environment.
Design Considerations for Corona and Grading Rings
Factors That Affect Ring Design (e.g., Height, Voltage Levels)
When making corona and grading rings, many things matter. Higher places have thinner air, which lowers breakdown voltage. This makes corona discharge happen more easily. To fix this, bigger or specially shaped rings are needed to control the electric field.
Voltage levels also change how rings are made. High-voltage systems need rings that handle strong electric fields. The ring’s size and shape must match the system’s voltage to spread the electric field evenly. Weather, like humidity and pollution, also affects design. In dirty or wet areas, bigger rings stop dirt and water from causing flashovers.
Materials Used for Corona and Grading Rings
The material of the rings affects how strong and useful they are. Common materials include aluminum alloys and stainless steel. Each has its own benefits. The table below shows their features:
| Material Type | Features |
|---|---|
| A380 Aluminum Alloy | Easy to shape, handles heat well, strong, resists high temperatures. |
| ZL101 Aluminum Alloy | Strong, flexible, good for casting, less likely to shrink or crack. |
| Stainless Steel | Resists rust, acid, and corrosion, great for outdoor use. |
Aluminum alloys are light and cheap, so they’re used a lot. Stainless steel is better for tough weather because it doesn’t rust or corrode.
Why Positioning and Sizing Matter
Where and how big the rings are is very important. Good placement spreads the electric field evenly, lowering stress on the insulator. Studies show that longer creepage distances improve performance. For example:
- Alternating shed insulators have a creepage distance of about 545 mm.
- This is 40% more than the 490 mm of deep under-rib insulators.
Longer creepage distances lower the chance of electrical problems. Right-sized rings also stop dirt buildup, which can cause flashovers. By placing and sizing rings correctly, high-voltage systems work better and last longer.
Practical Uses and Future Improvements
Uses in High-Voltage Power Systems
Corona and grading rings are important in high-voltage power systems. They are found on insulators in power lines and substations. These rings keep the electric field balanced to stop damage. By reducing corona discharge, they also save energy.
Reliability is very important in power systems. Corona rings protect insulators from dirt, weather, and other stresses. Grading rings help spread voltage evenly, making high voltages safer. This makes them key for modern power grids as electricity needs grow.
Rules for Corona and Grading Rings
Power companies know how important these rings are for insulators. Even at lower voltages like 115 kV, they stop corona in dry weather. This shows their role in keeping systems safe and working well.
Rules for these rings focus on electric field limits and materials. For example, the electric field on a ring must stay under 1.8 kV/mm. Following these rules helps systems work better and avoids costly problems. It also ensures projects meet safety laws, which is vital for big power systems.
New Ideas in Insulator Technology
New technology is making corona and grading rings better. Lightweight materials like aluminum alloys are strong and affordable. Engineers are also testing new shapes to improve electric field control.
Digital tools, like computer simulations, help design better rings before making them. This lowers mistakes and improves results. In the future, more ideas will make power systems stronger and better for the environment. These changes will help high-voltage systems last longer and work more efficiently.
Corona and grading rings are important for keeping composite insulators reliable. They manage electric fields to stop failures, save money on repairs, and make equipment last longer.
| Benefit | What It Does |
|---|---|
| Saves Money on Repairs | Stops corona discharge, protecting insulation and parts from damage. |
| Makes Equipment Last Longer | Helps high-voltage equipment stay strong for more years. |
| Boosts System Efficiency | Keeps systems running well, lowering overall expenses. |
Using the right materials and designs makes them work even better. Lightweight metals like aluminum alloys are strong and last a long time. Correct size and placement make them more effective. These steps help create a stable and long-lasting electrical system.
FAQ
What makes corona rings and grading rings different?
Corona rings manage the electric field at insulator ends. This stops corona discharge. Grading rings spread voltage evenly along the insulator. They lower stress and prevent damage. Both help high-voltage systems but do different jobs.
Why do composite insulators need corona rings?
Corona rings keep composite insulators safe by lowering electric field strength. This stops corona discharge, which can harm materials and waste energy. By controlling the electric field, they make insulators last longer and work better.
How do grading rings stop insulator problems?
Grading rings spread voltage evenly along the insulator. This stops hotspots and stress that could cause damage. They also reduce corona discharge, keeping insulators strong in high-voltage systems.
What are corona and grading rings made of?
Most corona and grading rings are made of aluminum or stainless steel. Aluminum is light and affordable. Stainless steel is tough and resists rust. Both materials help manage electric fields and last a long time.
Can these rings save energy?
Yes, they can. By stopping corona discharge, these rings cut energy loss. This makes high-voltage systems more efficient. It also lowers costs and improves power delivery reliability.
